Lynker Hydrofabric Data Model

Scope: Defines the schema and relationships for the Hydrofabric network — integrating flowpaths, catchments, points of interest (POIs), and external hydrolocation sources into a consistent, query-friendly model.

Overview

This model provides the canonical representation of a routed river network with associated catchments and reference points.
It supports:

Hydrologic analysis (flowpath connectivity, drainage accumulation).
Catchment delineation (divides and incremental areas).
External integration (gauges, reservoirs, and other hydrolocations).
Optimized queries through the denormalized Network table.

Table Descriptions

Flowpaths — The backbone of the model. Each record is a routed stream segment with downstream connectivity (flowpath_toid). Flowpaths store physical metrics (length, drainage area, hydrosequence), belong to processing tiles (vpuid), and can be grouped into mainstems. They are the anchor for Divides, POIs, and Hydrolocations.

Divides — Polygonal catchments linked to flowpaths. Divides provide area context (areasqkm) and type categories (network, coastal, internal). In most datasets, Divides map one-to-one with Flowpaths, though generalization can produce one-to-many.

POIs — Logical anchor points (e.g., stream gages, reservoirs, confluences). POIs snap to Flowpaths for routing and serve as aggregation nodes for Hydrolocations. Rollup fields summarize hydrolocation classes, types, and counts.

Hydrolocations — Individual features from external systems (NWIS, HUC12, NBI, HiLARRI, etc.). Hydrolocations snap to Flowpaths and group under POIs. They carry both source metadata (hl_type, hl_link) and semantic class (hl_class, e.g., gage, reservoir), with unique crosswalk identifiers (hl_reference).

Network — A denormalized, read-optimized view combining Flowpath, Divide, POI, Hydrolocation, and Hydrofabric crosswalks. It mirrors topology (flowpath_id, flowpath_toid, hydroseq) and exposes convenience fields (hf_*, flowline_*) for faster queries without multiple joins.

Flowlines — Fine-scale routing primitives underlying Flowpaths. Each Flowline has its own downstream pointer, hydrosequence, and incremental catchment. They roll up into Flowpaths but preserve detailed granularity for advanced analyses.

Incremental Area — Polygonal catchments representing direct contributing areas to Flowlines. These support area partitioning and proportional allocation across flowline networks.

Entities & Attributes

Flowpaths

Column	Type	Description
`flowpath_id`	int / text	Primary key for the flowpath.
`flowpath_toid`	int / text	Downstream `flowpath_id` (self-reference); `NULL` for terminal reaches.
`vpuid`	text	Vector Processing Unit identifier (processing/tiling key).
`poi_id`	int / text	Optional anchoring POI on this flowpath.
`mainstem_id`	int	Identifier grouping flowpaths in the same mainstem.
`areasqkm`	float	Area of the associated divide/catchment (sq km).
`lengthkm`	float	Flowpath length (km).
`total_dasqkm`	float	Total contributing drainage area at outlet (sq km).
`hydroseq`	int	Hydrosequence ordering (higher = upstream).
`streamorder`	int	Strahler Stream Order
`slope`	float	Slope of flow segment (m/m)

Divides

Column	Type	Description
`divide_id`	int / text	Primary key for the divide polygon.
`flowpath_id`	int / text	Associated `flowpath_id` (one-to-one, or one-to-many in generalized sets).
`vpuid`	text	Vector Processing Unit identifier.
`areasqkm`	float	Catchment area (sq km).
`type`	text	Divide type (e.g., `network`, `coastal`, `internal`).

POIs

Column	Type	Description
`poi_id`	int / text	Primary key for a Point of Interest.
`flowpath_id`	int / text	Flowpath this POI anchors to for routing.
`vpuid`	text	Vector Processing Unit identifier.
`hl_classes`	text	Comma-separated list of hydrolocation classes (e.g., `gage,reservoir`).
`hl_types`	text	Comma-separated list of hydrolocation source types (e.g., `nwis,huc12`).
`hl_count`	int	Number of hydrolocations aggregated into this POI.

Hydrolocations

Column	Type	Description
`poi_id`	int / text	FK to `POIs.poi_id`.
`flowpath_id`	int / text	Flowpath this hydrolocation is snapped to.
`vpuid`	text	Vector Processing Unit identifier.
`hl_type`	text	Source/dataset type, e.g., `nwis`, `huc12`, `nbi`, `hilarri`.
`hl_link`	text	Native identifier in the source system.
`hl_class`	text	Semantic class of the hydrolocation, e.g., `gage`, `reservoir`, `lake`, `confluence`.
`hl_reference`	text	Stable cross-system identifier, typically `{hl_type}-{hl_link}`. Unique across the model.
`hl_uri`	text	Optional resolvable URI to the hydrolocation’s online resource.

Network

Column	Type	Description
`flowpath_id`	int / text	PK; FK → `flowpaths.flowpath_id`.
`flowpath_toid`	int / text	Downstream flowpath reference.
`mainstem_id`	int	Mainstem grouping id.
`hydroseq`	int	Flowpath hydrosequence.
`areasqkm`	float	Associated divide area (sq km).
`lengthkm`	float	Flowpath length (km).
`total_dasqkm`	float	Total contributing drainage area at outlet (sq km).
`vpuid`	text	Vector Processing Unit identifier.
`divide_id`	int / text	FK → `divides.divide_id`.
`poi_id`	int / text	Optional FK → `pois.poi_id`.
`hl_reference`	text	Optional crosswalk to a linked hydrolocation.
`hf_id`	text	External Hydrofabric flowpath id.
`hf_toid`	text	External Hydrofabric downstream id.
`hf_source`	text	Source label for `hf_*` fields (e.g., `nhdplusv2`, `merit`).
`hf_hydroseq`	int	External Hydrofabric hydrosequence.
`flowline_id`	int	Underlying flowline id (if multiple are aggregated).
`flowline_toid`	int	Downstream flowline id.
`incremental_area_id`	int / text	FK → `incremental_area.incremental_area_id`
`flowline_areasqkm`	float	Catchment area (sq km) at flowline scale.
`flowline_hydroseq`	int	Hydrosequence at flowline granularity.
`flowline_lengthkm`	float	Flowline length (km).
`flowline_total_dasqkm`	float	Total drainage area at flowline outlet (sq km).

Flowlines

Column	Type	Description
`flowline_id`	int / text	Unique identifier for the fine-scale flowline.
`flowline_toid`	int / text	Immediate downstream flowline id.
`flowpath_id`	int / text	FK → `flowpaths.flowpath_id` that this flowline rolls up into.
`vpuid`	text	Vector Processing Unit identifier.
`mainstem_id`	int	Mainstem grouping id.
`flowline_hydroseq`	int	Hydrosequence at flowline granularity.
`flowpath_hydroseq`	int	Hydrosequence of the parent flowpath.
`incremental_area_id`	int / text	FK → `incremental_area.incremental_area_id`.
`incremental_areasqkm`	float	Incremental catchment area for this flowline (sq km).
`lengthkm`	float	Flowline length (km).
`total_dasqkm`	float	Total contributing drainage area at the flowline outlet (sq km).
`streamorder`	int	Strahler Stream Order
`slope`	float	Slope of flow segment (m/m)

Incremental Area

Column	Type	Description
`incremental_area_id`	int / text	Unique identifier for the incremental catchment polygon.
`incremental_proportion`	float	Proportion of the incremental area contributing to a flowline (0–1).
`flowline_id`	int / text	FK → `flowlines.flowline_id` linked to this incremental catchment.
`vpuid`	text	Vector Processing Unit identifier.
`areasqkm`	float	Incremental catchment area (sq km).
`type`	text	Category of area (e.g., `network`, `coastal`, `internal`).

Nexus

Column	Type	Description
`nexus_id`	int / text	Unique identifier for the nexus feature.
`nexus_toid`	int / text	Immediate downstream id.
`vpuid`	text	Vector Processing Unit identifier.
---

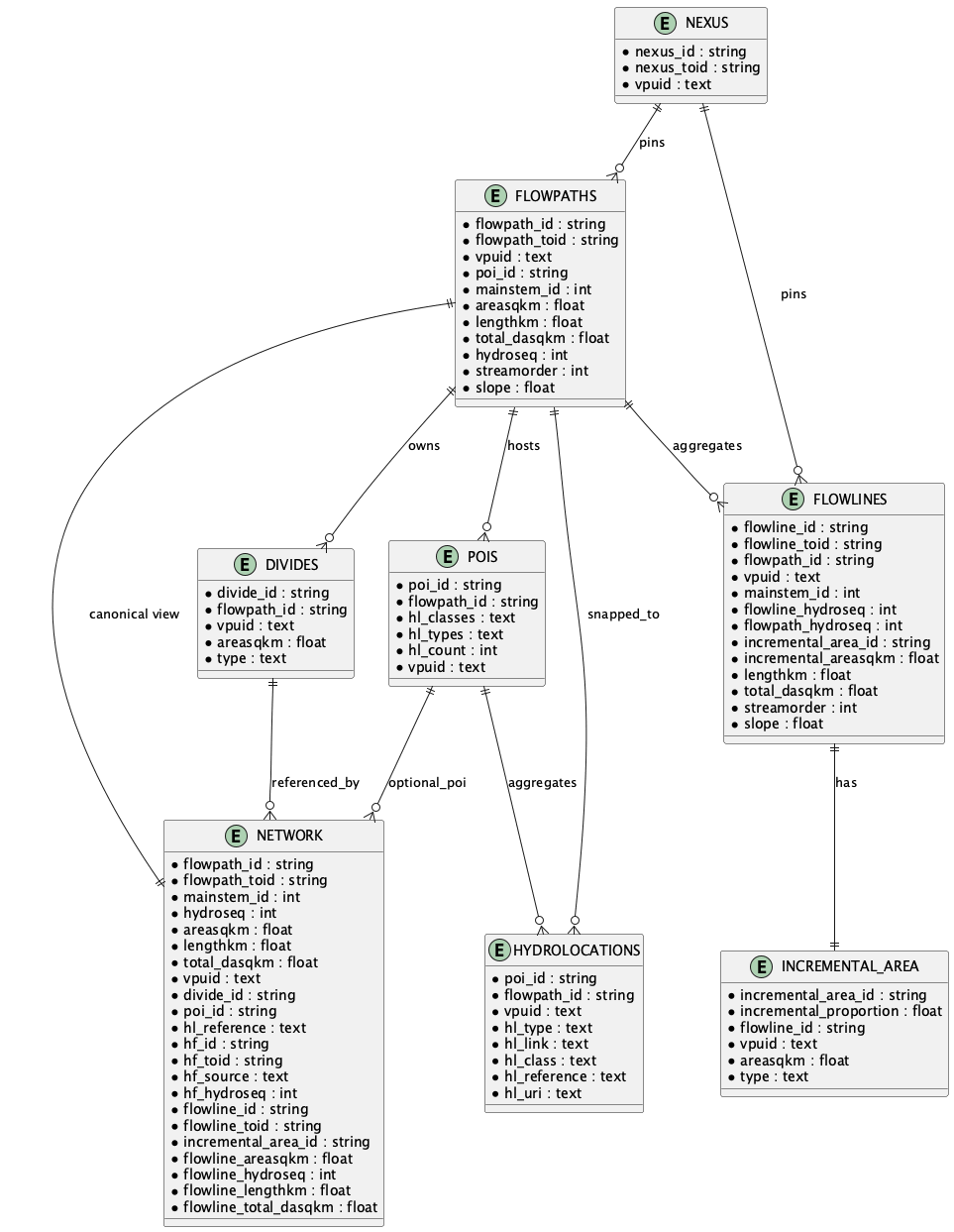

Relationships (ERD)

ERD

@startuml
entity FLOWPATHS {
  * flowpath_id : string
  * flowpath_toid : string
  * vpuid : text
  * poi_id : string
  * mainstem_id : int
  * areasqkm : float
  * lengthkm : float
  * total_dasqkm : float
  * hydroseq : int
  * streamorder : int
  * slope : float
}
entity DIVIDES {
  * divide_id : string
  * flowpath_id : string
  * vpuid : text
  * areasqkm : float
  * type : text
}
entity POIS {
  * poi_id : string
  * flowpath_id : string
  * hl_classes : text
  * hl_types : text
  * hl_count : int
  * vpuid : text
}
entity HYDROLOCATIONS {
  * poi_id : string
  * flowpath_id : string
  * vpuid : text
  * hl_type : text
  * hl_link : text
  * hl_class : text
  * hl_reference : text
  * hl_uri : text
}
entity NETWORK {
  * flowpath_id : string
  * flowpath_toid : string
  * mainstem_id : int
  * hydroseq : int
  * areasqkm : float
  * lengthkm : float
  * total_dasqkm : float
  * vpuid : text
  * divide_id : string
  * poi_id : string
  * hl_reference : text
  * hf_id : string
  * hf_toid : string
  * hf_source : text
  * hf_hydroseq : int
  * flowline_id : string
  * flowline_toid : string
  * incremental_area_id : string
  * flowline_areasqkm : float
  * flowline_hydroseq : int
  * flowline_lengthkm : float
  * flowline_total_dasqkm : float
}
entity FLOWLINES {
  * flowline_id : string
  * flowline_toid : string
  * flowpath_id : string
  * vpuid : text
  * mainstem_id : int
  * flowline_hydroseq : int
  * flowpath_hydroseq : int
  * incremental_area_id : string
  * incremental_areasqkm : float
  * lengthkm : float
  * total_dasqkm : float
  * streamorder : int
  * slope : float
}
entity INCREMENTAL_AREA {
  * incremental_area_id : string
  * incremental_proportion : float
  * flowline_id : string
  * vpuid : text
  * areasqkm : float
  * type : text
}
entity NEXUS {
  * nexus_id : string
  * nexus_toid : string
  * vpuid : text
}

FLOWPATHS ||--o{ DIVIDES : owns
FLOWPATHS ||--o{ POIS : hosts
POIS ||--o{ HYDROLOCATIONS : aggregates
FLOWPATHS ||--o{ HYDROLOCATIONS : snapped_to
FLOWPATHS ||--|| NETWORK : "canonical view"
DIVIDES ||--o{ NETWORK : referenced_by
POIS ||--o{ NETWORK : optional_poi
FLOWPATHS ||--o{ FLOWLINES : aggregates
FLOWLINES ||--|| INCREMENTAL_AREA : has
NEXUS ||--o{ FLOWPATHS : pins
NEXUS ||--o{ FLOWLINES : pins
@enduml
